Selector Lever Knob: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the SelectShift™ and the Tow/Haul electrical connectors and install the selector lever knob.
  2. Install a new LH selector lever knob screw.

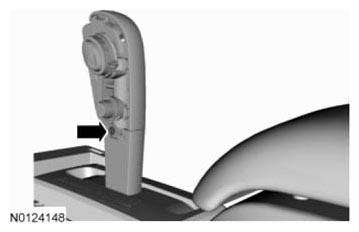

    Fig 1: Locating LH Selector Lever Knob Screw
    G07412495Courtesy of FORD MOTOR CO.
  3. Install a new RH selector lever knob screw.

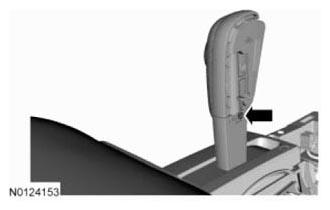

    Fig 2: Locating RH Selector Lever Knob Screw
    G07412494Courtesy of FORD MOTOR CO.
  4. Install a new LH selector lever knob cover.

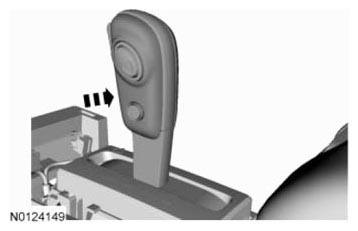

    Fig 3: Installing LH Selector Lever Knob Cover
    G07412498Courtesy of FORD MOTOR CO.
  5. Install a new RH selector lever knob cover.

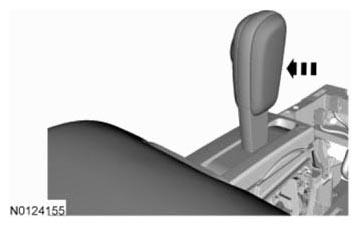

    Fig 4: Installing RH Selector Lever Knob Cover
    G07412499Courtesy of FORD MOTOR CO.
  6. Connect and install the floor console upper finish panel.

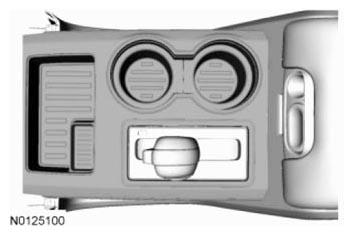

    Fig 5: Identifying Floor Console Upper Finish Panel
    G07412500Courtesy of FORD MOTOR CO.
  7. Install the instrument panel to floor console finish panel.

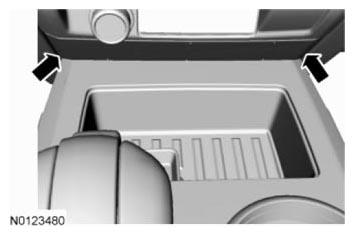

    Fig 6: Locating Instrument Panel To Floor Console Finish Panel
    G07412490Courtesy of FORD MOTOR CO.
