Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel to floor console finish panel.

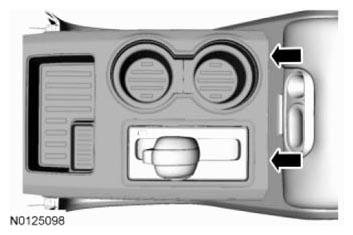

Fig 1: Locating Instrument Panel To Floor Console Finish Panel
Courtesy of FORD MOTOR CO.
Remove the floor console upper finish panel.
- Starting at the rear of the upper finish panel, carefully pry up the upper finish panel and disconnect the electrical connectors.

  Fig 2: Locating Floor Console Upper Finish Panel
  Courtesy of FORD MOTOR CO.
Remove and discard the RH selector lever knob cover.
1. Start at the bottom front.
2. Move towards the top front and remove the cover.

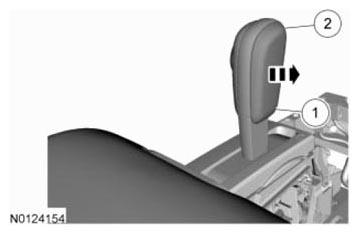

  Fig 3: Removing RH Selector Lever Knob Cover
  Courtesy of FORD MOTOR CO.
Remove and discard the LH selector lever knob cover.
1. Start at the bottom front.
2. Move towards the top front and remove the cover.

  Fig 4: Removing LH Selector Lever Knob Cover
  Courtesy of FORD MOTOR CO.
Remove and discard the RH selector lever knob screw.

Fig 5: Locating RH Selector Lever Knob Screw
Courtesy of FORD MOTOR CO.
Remove and discard the LH selector lever knob screw.

Fig 6: Locating LH Selector Lever Knob Screw
Courtesy of FORD MOTOR CO.
Disconnect the select shift and the Tow/Haul electrical connectors and remove the selector lever knob.
Lift the tabs on the selector lever bezel and lift the bezel.

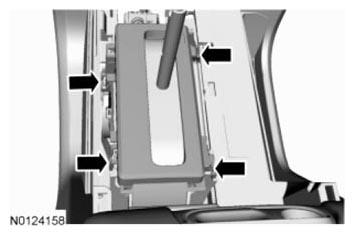

Fig 7: Locating Tabs On Selector Lever Bezel
Courtesy of FORD MOTOR CO.
Disconnect the electrical harness from the bezel and remove the selector lever bezel.

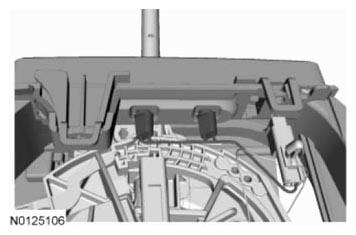

Fig 8: Identifying Electrical Harness And Selector Lever Bezel
Courtesy of FORD MOTOR CO.
