Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column shrouds. For additional information, REFER to STEERING COLUMN .
Disconnect the Tow/Haul switch electrical connector.

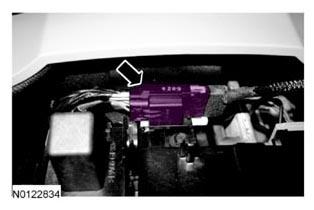

Fig 1: Locating Tow/Haul Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove and discard the selector lever bolt.
- To install, tighten to 18 Nm (159 lb-in).

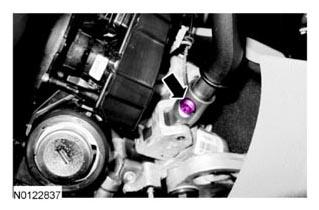

  Fig 2: Locating Selector Lever Bolt
  Courtesy of FORD MOTOR CO.
Remove the selector lever.
To install, reverse the removal procedure.
