Brake Shift Interlock Actuator - Column Shift: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Install the park position switch.
1. Place the large plunger on the park position switch in the locating hole and position the switch as shown in illustration.
2. Rotate the park position switch counterclockwise making sure the tab locks under the housing lip.

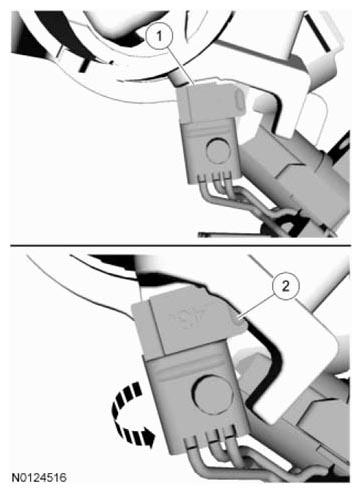

  Fig 1: Rotating Park Position Switch Counterclockwise
  Courtesy of FORD MOTOR CO.
Verify small plunger is fully extended.

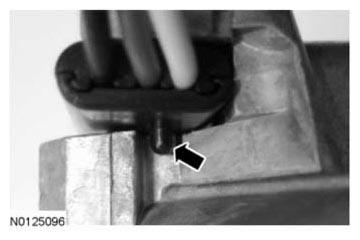

Fig 2: Locating Small Plunger
Courtesy of FORD MOTOR CO.
Install the BSIA.
1. Insert the BSIA into the selector lever mechanism housing.
2. Gently push the snap lock clip in place.

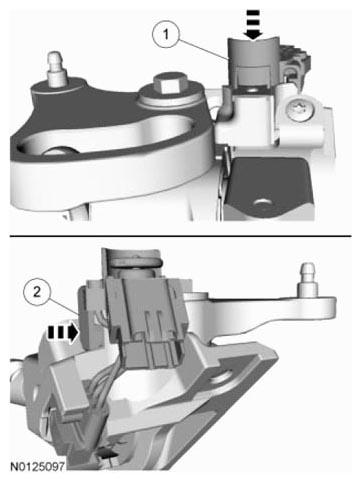

  Fig 3: Pushing Snap Lock Clip
  Courtesy of FORD MOTOR CO.
Install the BSIA screw.
- Tighten to 2 Nm (18 lb-in).

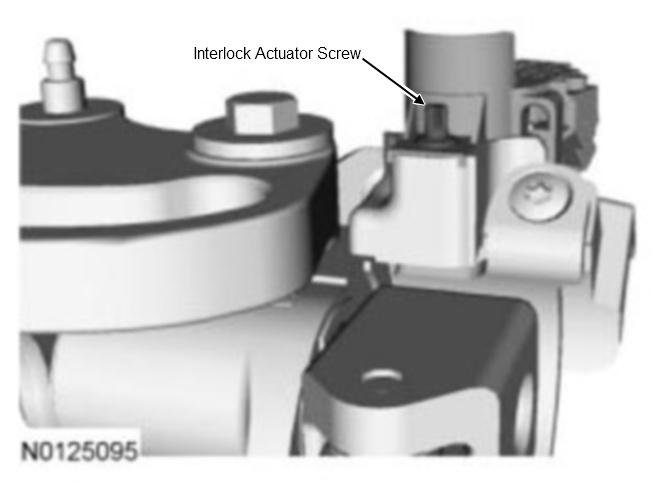

  Fig 4: Identifying Brake Shift Interlock Actuator Screw
  Courtesy of FORD MOTOR CO.
Install the selector lever mechanism. For additional information, refer to SELECTOR LEVER MECHANISM - COLUMN SHIFT .
