Thermostatic Expansion Valve: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

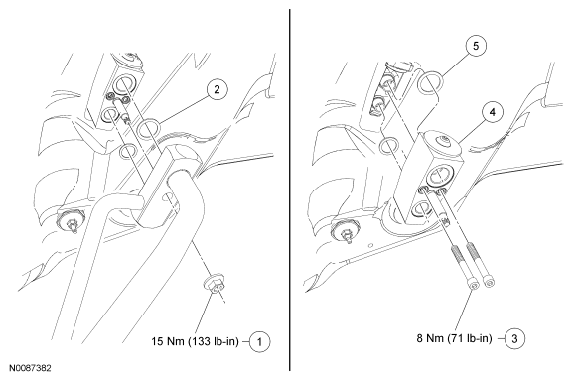

| Item | Part Number | Description |
|---|---|---|
| 1 | W520413 | Thermostatic Expansion Valve (TXV) fitting nut |
| 2 | 19B596 | Gasket seal kit (2 pieces from kit required) |
| 3 | - | TXV bolt (part of 19849 kit) (2 required) |
| 4 | 19849 | TXV |
| 5 | 19B596 | Gasket seal kit (2 pieces from kit required) |
