Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. For additional information, REFER to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
Disconnect the 2 PCM electrical connectors and the ground cable.
1. Disconnect the 2 PCM electrical connectors.
2. If equipped with a 5.0L engine, remove the nut and disconnect the ground cable.
  - To install, tighten to 9 Nm (80 lb-in).

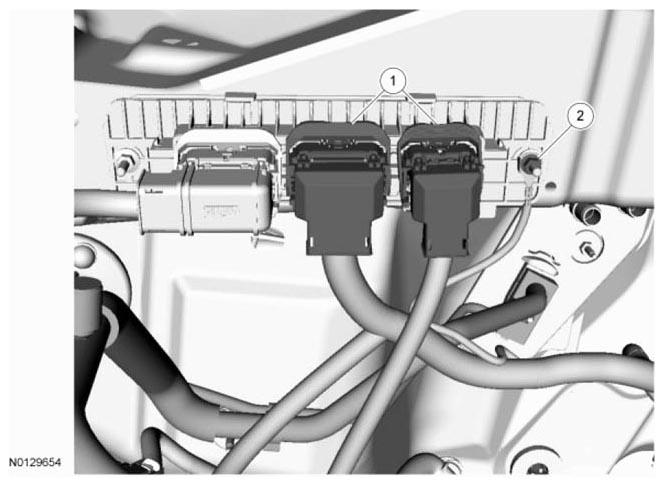

    Fig 1: Identifying PCM Electrical Connectors And Ground Cable
    Courtesy of FORD MOTOR CO.
Remove the condenser outlet fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (133 lb-in).
Remove the Thermostatic Expansion Valve (TXV) manifold and tube bracket bolt.
- To install, tighten to 8 Nm (71 lb-in).
Remove the evaporator-to-compressor suction line fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.
- To install, tighten to 15 Nm (133 lb-in).
Remove the TXV fitting nut and disconnect the fitting.
- Discard the gasket seals.
- To install, tighten to 15 Nm (133 lb-in).
To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.
- Add the correct amount of clean PAG oil to the refrigerant system. For additional information, refer to the Refrigerant Oil Adding procedure in CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
Evacuate, leak test and charge the refrigerant system. For additional information, REFER to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
