Removal and Installation
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Installation of a new receiver/drier desiccant cartridge is not required when repairing the A/C system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier desiccant cartridge. Damage to the receiver/drier desiccant cartridge includes physical damage to the receiver/drier desiccant cartridge or moisture contamination. Moisture contamination results only from a complete loss of refrigerant and equalization of the refrigerant system pressure with atmospheric pressure for a period longer than one hour. If even a slight amount of positive refrigerant pressure is present in the system before repairs are carried out, the receiver/drier desiccant cartridge should not be replaced.
- Remove the condenser core. For additional information, refer to CONDENSER CORE .
- Unscrew and remove the plastic receiver/drier cap.
- Remove the receiver/drier plug.

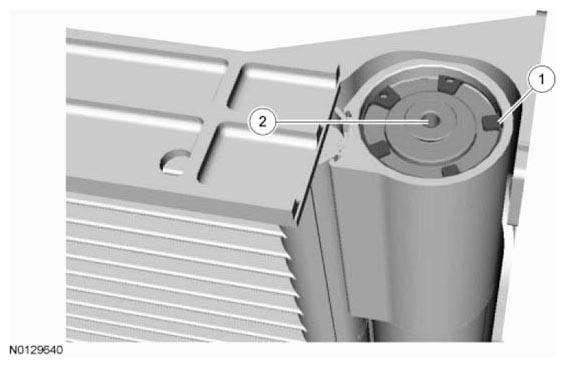

- Push the receiver/drier plug downwards and remove the snap ring.
- Install an M5 bolt in the center of the receiver drier plug and remove the plug.

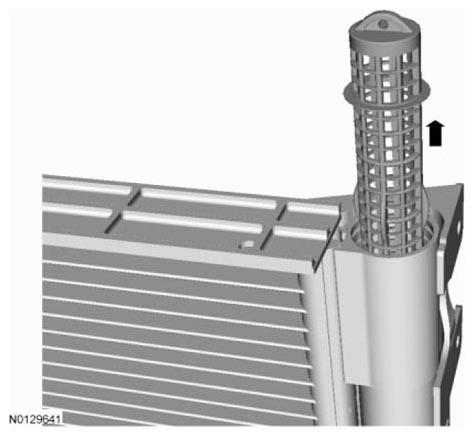

- Using pliers, grasp the receiver/drier cartridge grab handle and remove the receiver/drier cartridge.
- To install, reverse the removal procedure.
- Lubricate the receiver/drier plug O-ring seals using residual refrigerant oil from inside the receiver/drier.
