With Navigation System
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

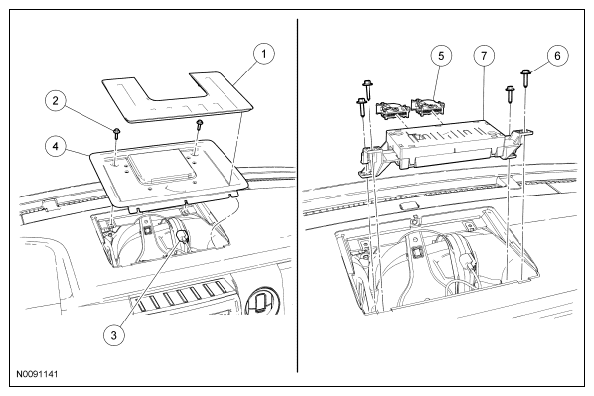

Fig 1: Identifying Heating Ventilation Air Conditioning Module Removal And Installation - With Navigation System
| Item | Part Number | Description |
|---|---|---|
| 1 | 15045G34 | Upper instrument panel storage tray mat |
| 2 | W707628 | Upper instrument panel storage tray screw (2 required) |
| 3 | - | Speaker electrical connector (part of 14401) |
| 4 | 15042A82 | Upper instrument panel storage tray |
| 5 | - | HVAC module electrical connector (part of 14401) (2 required) |
| 6 | W707628 | HVAC module screw (4 required) |
| 7 | 19980 | HVAC module |
