Clutch and Clutch Field Coil: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. For additional information, refer to AIR CONDITIONING (A/C) COMPRESSOR  .
  2. Remove the A/C clutch disc and hub bolt.
    1. Using the A/C Clutch Holding Tool, hold the A/C clutch disc and hub.
    2. Remove the A/C clutch disc and hub bolt.

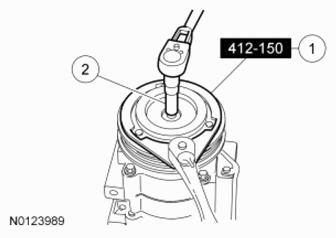

      Fig 1: Removing A/C Clutch Disc And Hub Bolt
      G07413224Courtesy of FORD MOTOR CO.
  3. Remove the A/C clutch disc and hub.
  4. Remove the A/C compressor pulley snap ring.
    5. NOTE: Do not use air tools. Damage to the Air Conditioning (A/C) clutch pulley or A/C compressor may result.
  5. Using the Compressor Pulley Remover, remove the A/C compressor pulley.
    1. Install the Compressor Pulley Remover.
    2. Remove the A/C compressor pulley.
      Fig 2: Removing A/C Compressor Pulley Using Compressor Pulley Remover
      G06064734Courtesy of FORD MOTOR CO.
  6. Remove the A/C clutch field coil snap ring.
  7. Remove the A/C clutch field coil electrical connector screw.
  8. Remove the A/C clutch field coil.
