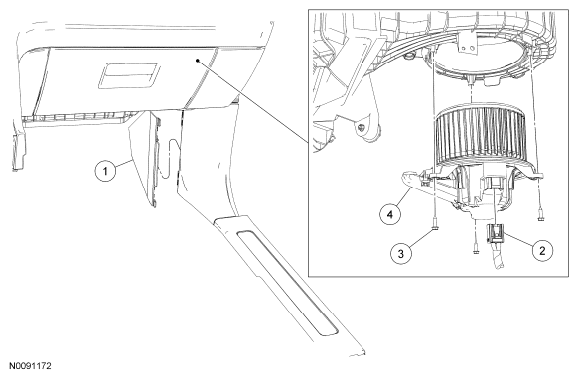

Blower Motor: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
02348 |
Junction box cover |
| 2 |
- |
Blower motor electrical connector (part of 18B574) |
| 3 |
W701696 |
Blower motor screw (3 required) |
| 4 |
19805 |
Blower motor and wheel assembly |
