A/C Compressor 5.0L (4V), 6.2L (2V)
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

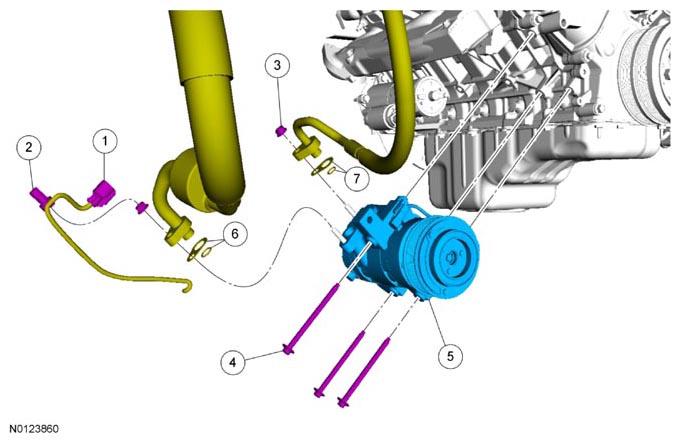

5.0L (4V) shown in illustration, 6.2L (2V) similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | A/C compressor electrical connector (part of 14300) |
| 2 | - | Wire harness retainer (part of 14300) |
| 3 | W520413 | A/C compressor fitting nut (2 required) - 15 Nm (133 lb-in) |
| 4 | W704750 | A/C compressor bolt (3 required) - 25 Nm (18 lb-ft) |
| 5 | 19703 | A/C compressor |
| 6 | 19B596 | O-ring seal and gasket seal kit |
| 7 | 19B596 | O-ring seal and gasket seal kit |
