Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: If the vehicle is equipped with a smoker's package, the instrument panel lower storage compartment will be replaced with an ash tray.

Remove the lower instrument panel center finish panel. For additional information, refer to Instrument Panel Finish Panel - Center, Lower .
Vehicles equipped with a storage compartment
Remove the 4 instrument panel lower storage compartment screws.

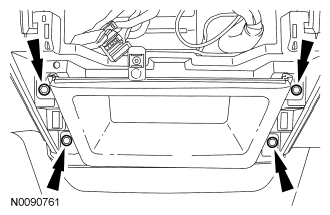

Fig 1: Locating Instrument Panel Lower Storage Compartment Screws
Courtesy of FORD MOTOR CO.
Remove the instrument panel lower storage compartment.
Vehicles equipped with an ash tray
Remove the 4 ash tray screws.

Fig 2: Locating Ash Tray Screws
Courtesy of FORD MOTOR CO.
Remove the ash tray.
All vehicles
To install, reverse the removal procedure.
