Instrument Panel Finish Panels

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

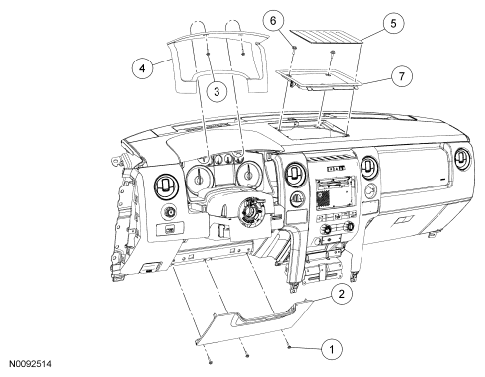

Fig 1: Identifying Instrument Panel Finish Panels (View 1 Of 3)
G06173735Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707628 Steering column opening trim panel screw (3 required)
2 04459 Steering column opening trim panel
3 - Instrument cluster finish panel screw (2 required)
4 044D70 Instrument cluster finish panel
5 045G34A Upper storage compartment mat
6 - Upper storage compartment screw (2 required)
7 042A82 Upper storage compartment
