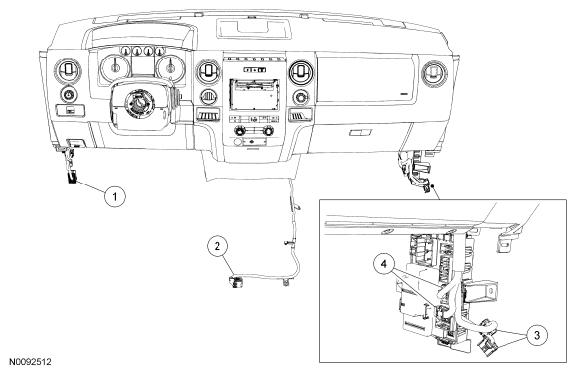

Instrument Panel Electrical Connectors
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
LH lower cowl electrical connector (part of 14401) |
| 2 |
- |
Small Restraints Control Module (RCM) electrical connector (part of 14401) |
| 3 |
- |
RH lower cowl electrical connectors (part of 14401) |
| 4 |
- |
Smart Junction Box (SJB) electrical connectors (part of 14401) |
