Battery Current Sensor: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

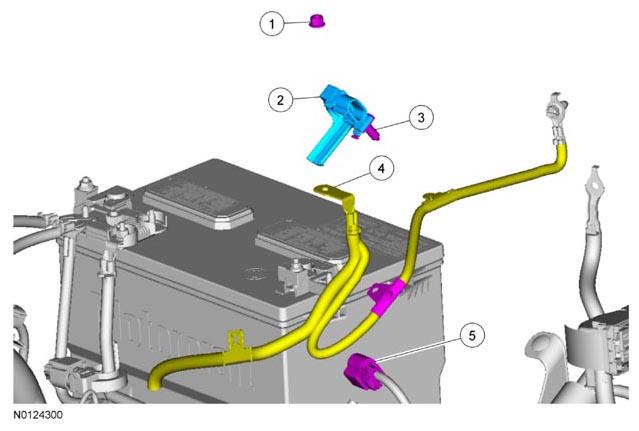

| Item |
Part Number |
Description |
| 1 |
- |
Battery terminal nut (part of 14300) - 9 Nm (80 lb-in) |
| 2 |
14B357 |
Battery current sensor |
| 3 |
- |
Battery current sensor retainer (part of 14B357) |
| 4 |
- |
Negative battery cable terminal (part of 14300) |
| 5 |
- |
Battery current sensor electrical connector (part of 12A581) |
