Battery Cables - 6.2L: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

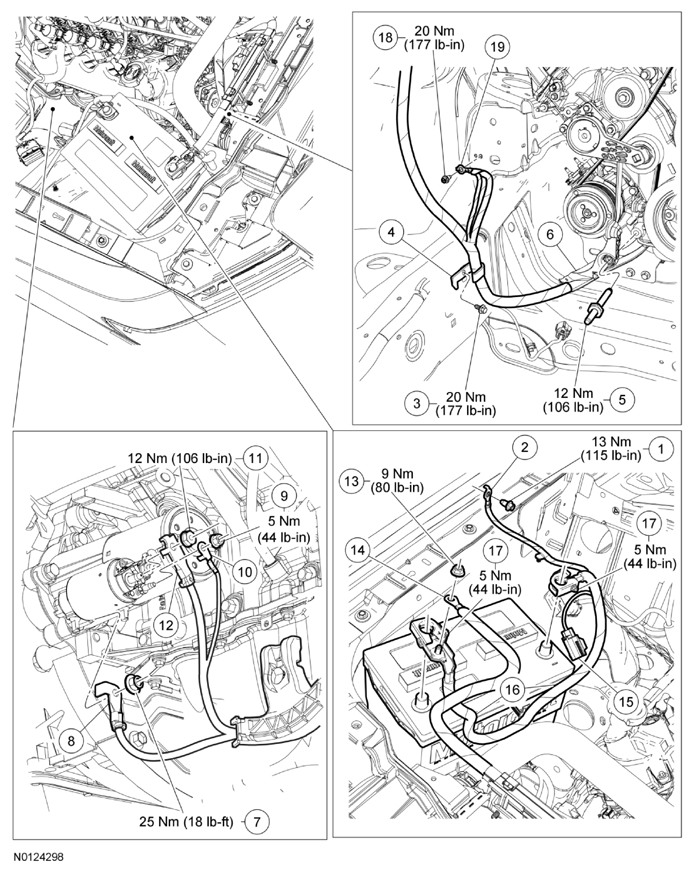

| Item | Part Number | Description |
|---|---|---|
| 1 | W705661 | Battery cable body ground terminal bolt |
| 2 | - | Battery cable body ground terminal (part of 14300) |
| 3 | W506424 | Battery cable harness bracket bolt |
| 4 | - | Battery cable harness bracket |
| 5 | N808586 | Battery cable shield stud bolt |
| 6 | - | Battery cable shield (part of 14300) |
| 7 | N805024 | Battery cable engine ground nut |
| 8 | - | Battery cable engine ground terminal (part of 14300) |
| 9 | W705790 | Starter solenoid wire terminal nut |
| 10 | - | Starter solenoid wire terminal (part of 14300) |
| 11 | W706414 | Starter solenoid positive cable terminal nut |
| 12 | - | Starter solenoid positive cable terminal (part of 14300) |
| 13 | W705790 | Generator B+ cable terminal nut/Power Distribution Box (PDB) cable terminal nut |
| 14 | 14305 | Generator B+ cable terminal |
| 15 | - | Battery cable in-line electrical connector (part of 14300) |
| 16 | 14300 | Battery cables |
| 17 | - | Battery cable terminal nut (part of 14300) (2 required) |
| 18 | W505261 | Battery cable chassis ground terminal bolt |
| 19 | - | Battery cable chassis ground terminal (part of 14300) |
