Battery Connections
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

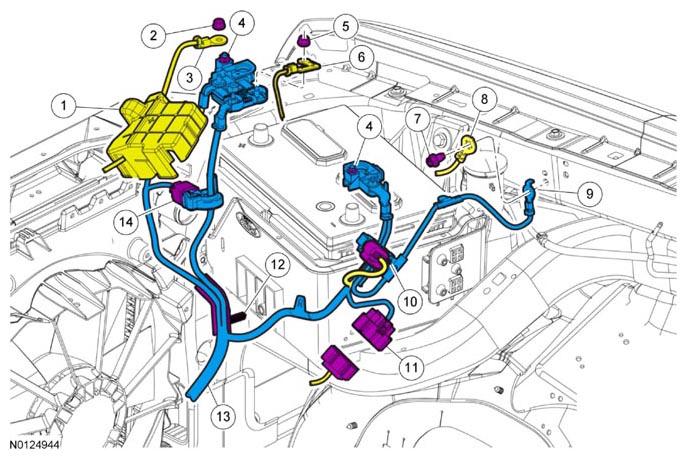

| Item | Part Number | Description |
|---|---|---|
| 1 | 14277 | Battery terminal cover |
| 2 | W705790 | Battery Junction Box (BJB) harness positive terminal nut - 9 Nm (80 lb-in) |
| 3 | - | BJB harness positive terminal (part of 12A581) |
| 4 | - | Battery cable terminal nut (part of 14300) - 5 Nm (44 lb-in) |
| 5 | W705790 | Power Steering Control Module (PSCM) harness positive terminal nut - 9 Nm (80 lb-in) |
| 6 | - | PSCM harness positive terminal (part of 3F720) |
| 7 | W705661 | Battery cable body ground terminal bolt - 13 Nm (115 lb-in) |
| 8 | - | PSCM harness ground terminal (part of 3F720) |
| 9 | - | Battery cable body ground terminal (part of 14300) |
| 10 | - | Battery current sensor electrical connector (part of 12A581) |
| 11 | - | Battery cable in-line electrical connector (part of 14300) |
| 12 | - | Battery cable wire harness retainer (part of 14300) |
| 13 | 14300 | Battery cable |
| 14 | - | Generator current sensor electrical connector (part of 14300) |
