Battery Cable to Generator Connections
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

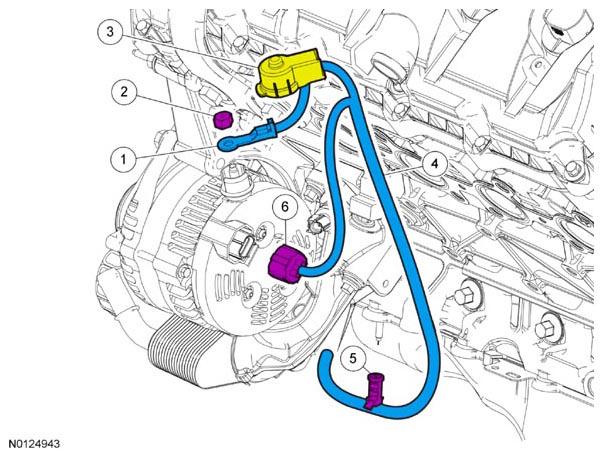

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Generator B+ cable end (part of 14300) |
| 2 | W711953 | Generator B+ cable end nut - 17 Nm (150 lb-in) |
| 3 | - | Generator B+ cable end cover (part of 14300) |
| 4 | 14300 | Battery cable |
| 5 | - | Battery cable wire harness retaining clip (part of 14300) |
| 6 | - | Generator electrical connector (part of 14300) |
