Radiator Grille Support

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

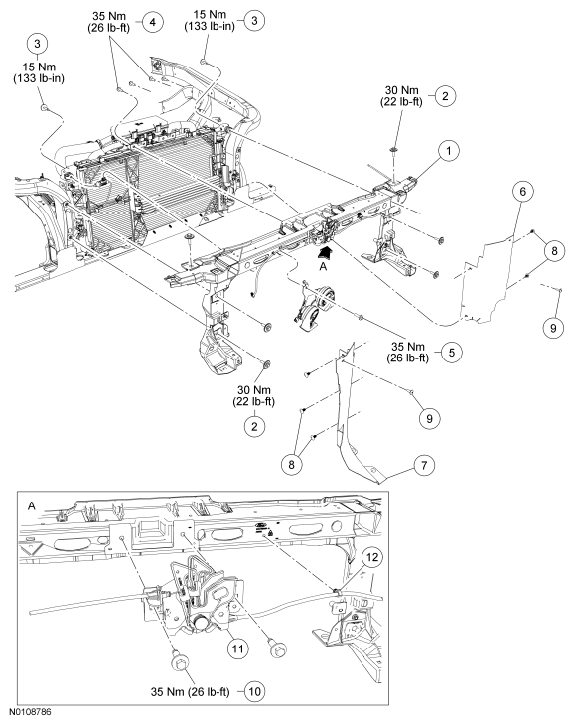

Fig 1: Exploded View Of Radiator Grille Support With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	16E166	Radiator grille support
2	W712360	Radiator grille support bolts (6 required)
3	W710309	Coolant module bolts (2 required)
4	W711851	Smart Junction Box (SJB) bolts (4 required)
5	W711848	Horn bracket bolt
6	8A261	LH air deflector
7	8A211	RH air deflector
8	W388577	Air deflector pushpins (5 required)
9	W706350	Air deflector scrivets (2 required)
10	W711848	Hood release bolt (2 required)
11	16700	Hood release
12	W712867	Hood release cable retainer (5 required)

Remove the front bumper. For additional information, REFER to BUMPERS .
Remove the front bumper cover. For additional information, REFER to BUMPERS .
Depower the Supplemental Restraint System (SRS). For additional information, refer to Supplement Restraint System Depower and Repower in SUPPLEMENTAL RESTRAINT SYSTEM .
Remove the front LH and RH SRS impact sensor bolt and position the sensor and harness aside.
Remove the 2 hood release bolts.
- To install, tighten to 35 Nm (26 lb-ft).
Release the hood cable retainers from the radiator grille support and position the hood release and cable aside.
Disconnect the horn wiring connector.
Remove the ambient air sensor retainer from the radiator grille support and position the sensor and harness aside.
Remove the horn bracket bolt.
- To install, tighten to 35 Nm (26 lb-ft).
Remove the 4 Smart Junction Box (SJB) bolts and position the SJB inward.
- To install, tighten to 35 Nm (26 lb-ft).

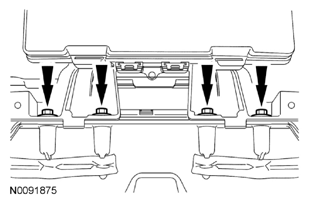

Fig 2: Locating Smart Junction Box Bolts
Courtesy of FORD MOTOR CO.
Remove the 2 coolant module bolts-to-radiator from the rear of the grille support.
- To install, tighten to 15 Nm (133 lb-in).
Fig 3: Locating Coolant Module Bolt
Courtesy of FORD MOTOR CO.
Remove the 6 radiator grille support bolts (3 each side).
- To install, tighten to 30 Nm (22 lb-ft).

NOTE: It will be necessary to lift the cooling module upward and slide the radiator support forward to separate the radiator grille support from the cooling module.

Remove the radiator grille support.

NOTE: Inspect all of the radiator grille support insulters. Replace as necessary.

To install, reverse the removal procedure.
- Transfer all necessary components.
- Repower the Supplemental Restraint System (SRS). For additional information, refer to Supplement Restraint System Depower and Repower in SUPPLEMENTAL RESTRAINT SYSTEM .
