F-150 Radiator Grille

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

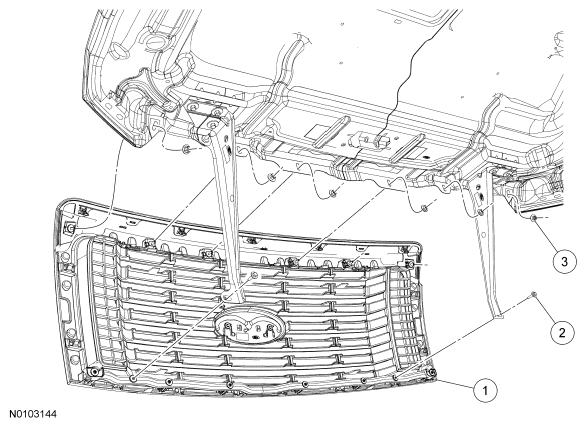

Fig 1: Identifying F-150 Radiator Grille Related Components
G06462468Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8200 Radiator grille
2 W714661 Radiator grille bolt (2 required)
3 W520832 Radiator grille nut (6 required)
