Cowl Panel Grille: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

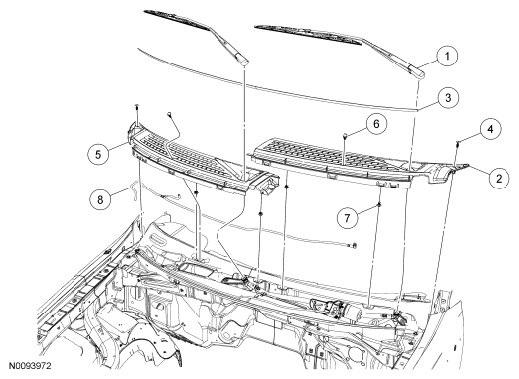

| Item | Part Number | Description |
|---|---|---|
| 1 | 17526A LH/17527A RH | Wiper pivot arm |
| 2 | 15022A69A | Left cowl panel grille |
| 3 | 1502824A | Cowl panel grille seal |
| 4 | W710312 | Cowl grille pushpin retainer (2 required) |
| 5 | 15022A68A | Right cowl panel grille |
| 6 | 17603 | Windshield washer nozzle (2 required) |
| 7 | W708771 | Cowl grille pushpin retainer (4 required) |
| 8 | 17K664 | Windshield washer hose |
