Steering Column Shaft: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

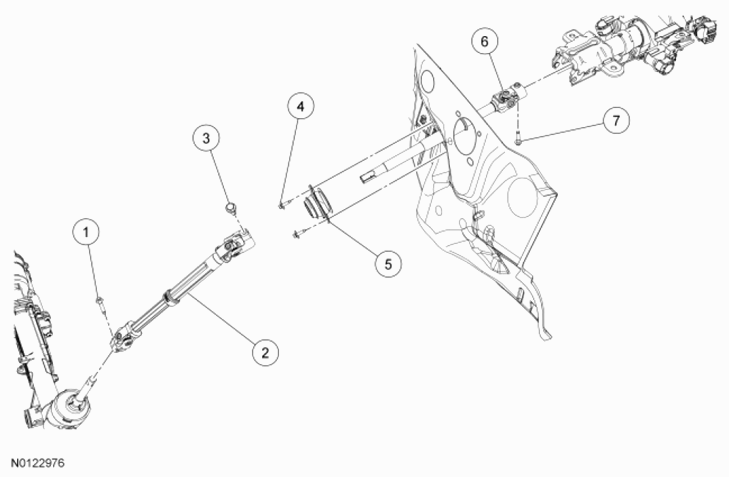

| Item | Part Number | Description |
|---|---|---|
| 1 | N808684 | Lower steering column shaft-to-steering gear bolt |
| 2 | 3B676 | Lower steering column shaft |
| 3 | W710570 | Lower steering column shaft-to-upper steering column shaft bolt |
| 4 | W705132 | Steering column shaft dash seal bolt (2 required) |
| 5 | 3D677 | Steering column shaft dash seal |
| 6 | 3E751 | Upper steering column shaft |
| 7 | W714409 | Upper steering column shaft-to-steering column bolt |
