Steering Column Motor - Tilt: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column. For additional information, refer to STEERING COLUMN .
Place the steering column upside down on a workbench.
Detach the electrical connector pin-type retainer from the steering column.

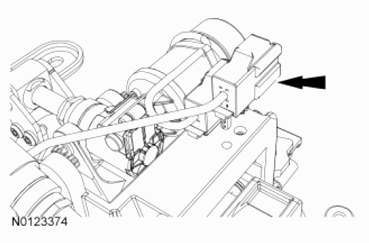

Fig 1: Locating Electrical Connector Pin-Type Retainer On Steering Column
Courtesy of FORD MOTOR CO.
Remove the 2 steering column motor screws.

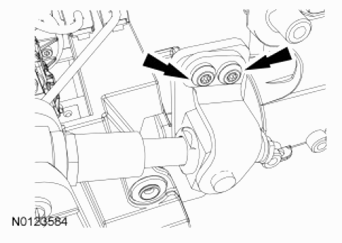

Fig 2: Locating Steering Column Motor Screws
Courtesy of FORD MOTOR CO.
Remove the 2 steering column motor trunnion nut capture bracket screws and the trunnion nut capture bracket.

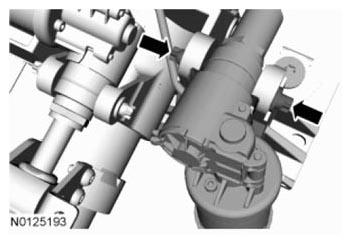

Fig 3: Locating Steering Column Motor Trunnion Nut
Courtesy of FORD MOTOR CO.
Remove the steering column motor.
