Steering Column Motor - Tilt: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

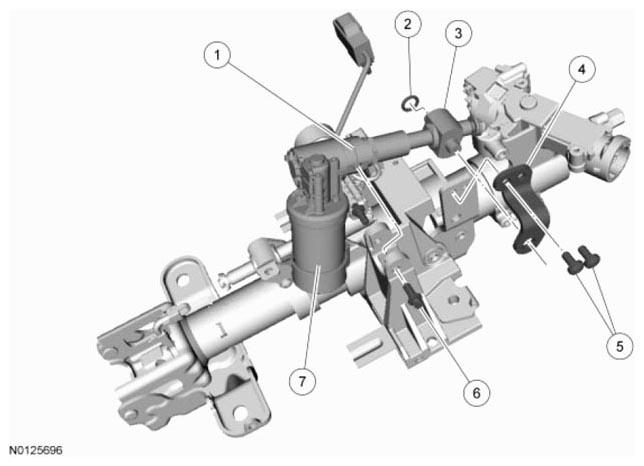

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Leadscrew housing (part of 3F797) |
| 2 | - | O-ring (part of 3F797) |
| 3 | - | Trunion nut (part of 3F797) |
| 4 | - | Trunion nut capture bracket (part of 3C529) |
| 5 | - | Trunion nut capture bracket screws (2 required) (part of 3C529) |
| 6 | - | Steering column motor screws (2 required) (part of 3C529) |
| 7 | 3F797 | Steering column motor (tilt) |
