Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Open and support the tailgate.
If equipped, remove the tailgate step assist handle. For additional information, REFER to PICKUP BED AND PLATFORM BODY .
Remove the bolts and the tailgate access panel (7 bolts for flareside bed, 8 for without step tailgate, or 13 with step tailgate).
- To install, tighten to 5 Nm (44 lb-in).
Open the clip and release the tailgate latch actuating rod from the tailgate remote control.

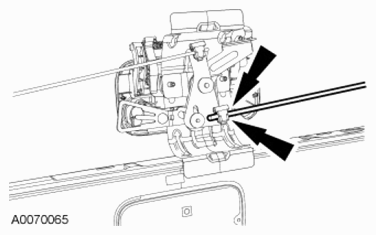

Fig 1: Locating Clip And Tailgate Latch Actuating Rod On Tailgate Remote Control
Courtesy of FORD MOTOR CO.
If equipped, release the tailgate latch actuating rod locator from the tailgate.
Remove the upper tailgate latch bolt.
- To install, tighten to 25 Nm (18 lb-ft).
Remove the lower tailgate latch bolt and the tailgate latch cable.
- To install, tighten to 25 Nm (18 lb-ft).
Remove the tailgate latch.
To install, reverse the removal procedure.
