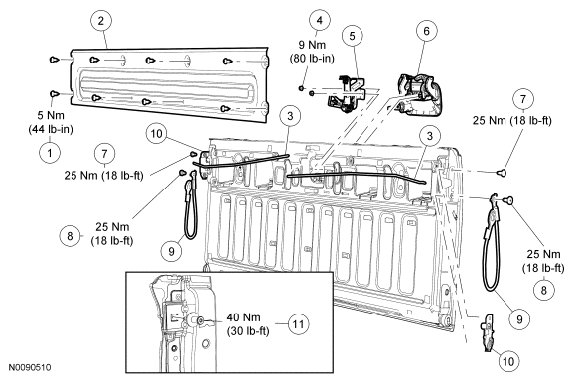

Tailgate Handle, Lock and Latches - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Conventional tailgate without step shown in illustration, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tailgate access panel screws (8 required for conventional tailgate, 7 for flareside, and 13 for step tailgate) |
| 2 | - | Tailgate access panel |
| 3 | - | Tailgate latch actuating rods |
| 4 | N620480 | Tailgate remote control nuts (2 required) |
| 5 | 9943170 | Tailgate remote control |
| 6 | 9943400 | Tailgate release handle |
| 7 | N806910 | Tailgate latch bolt (upper) |
| 8 | W711291 | Tailgate latch bolt (lower) |
| 9 | 5443053/5443052 | Tailgate latch cable (LH/RH) |
| 10 | 9943150 | Tailgate latches |
| 11 | 99404A42 | Tailgate latch striker |
- For additional information, refer to the appropriate procedures in this information.
