Rear Door Latch - Upper, SuperCab: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

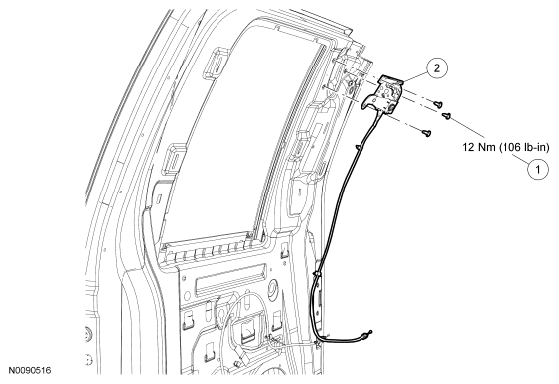

Fig 1: Rear Door Latch Removal And Installation -- Upper, SuperCab With Torque Specifications
G06173855Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W714092 Upper door latch bolts (3 required)
2 18264A01/18264A00 Upper door latch and cable (LH/RH)
