Rear Door Latch - Lower, SuperCab: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

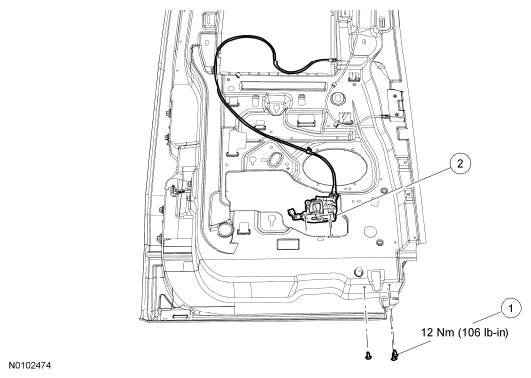

Fig 1: Rear Door Latch Removal And Installation -- Lower, SuperCab With Torque Specifications
G06173856Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W714092 Lower door latch bolts (3 required)
2 18264A01/18264A00 Lower door latch and cable (LH/RH)
