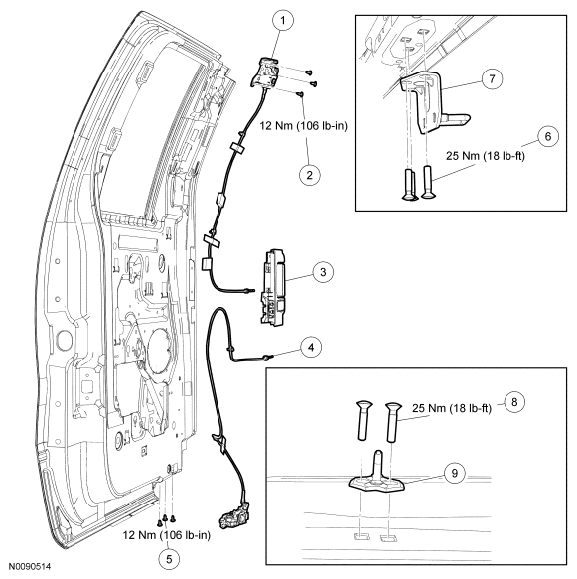

Rear Door Handles, Locks and Latches - Exploded View, SuperCab
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 18264A01/18264A00 | Upper door latch and cable (LH/RH) |
| 2 | W714092 | Upper door latch bolts (3 required) |
| 3 | 1822601/1822600 | Interior door handle (LH/RH) |
| 4 | 18264A01/18264A00 | Lower door latch and cable (LH/RH) |
| 5 | W714092 | Lower door latch bolts (3 required) |
| 6 | W710881 | Upper door latch striker bolts (3 required) |
| 7 | 18265A05/18265A04 | Upper door latch striker (LH/RH) |
| 8 | W710881 | Lower door latch striker bolts (2 required) |
| 9 | 18264B70 | Lower door latch striker |
- For additional information, refer to the appropriate procedures in this information.
