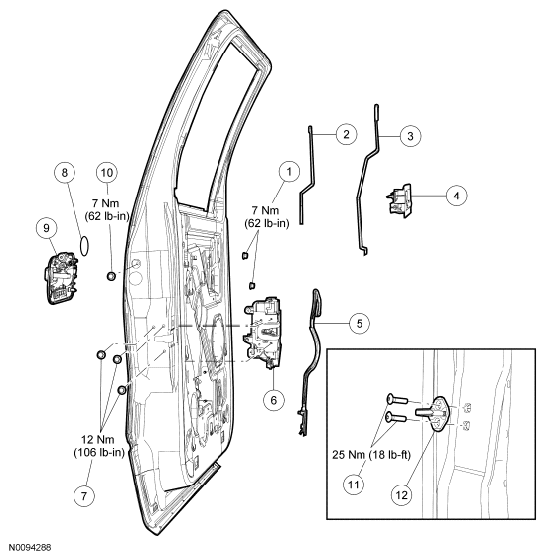

Rear Door Handles, Locks and Latches - Exploded View, Super Crew
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N620480 | Exterior door handle nuts (2 required) |
| 2 | 1626461/1626460 | Exterior rear door handle actuating rod (LH/RH) |
| 3 | 1522152 | Door lock rod |
| 4 | 1822601/1822600 | Interior door handle (LH/RH) |
| 5 | 54221A00 Door | latch release cable |
| 6 | 5426413/5426412 | Door latch (LH/RH) |
| 7 | W714092 | Door latch bolts (3 required) |
| 8 | W714163 | Exterior rear door handle seal |
| 9 | 1626605/1626604 | Exterior rear door handle (LH/RH) |
| 10 | W709562 | Exterior rear door handle bolt |
| 11 | W714017 | Door latch striker bolts (2 required) |
| 12 | 1522008 | Door latch striker |
- For additional information, refer to the appropriate procedures in this information.
