Hood Latch: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

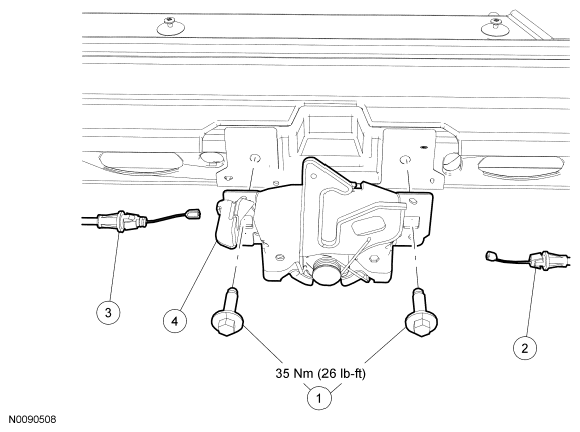

Fig 1: Hood Latch Removal And Installation With Torque Specifications
G06458971Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711848 Hood latch bolts (2 required)
2 16916 Primary hood latch release cable
3 16916 Secondary hood latch release cable
4 16700 Hood latch
