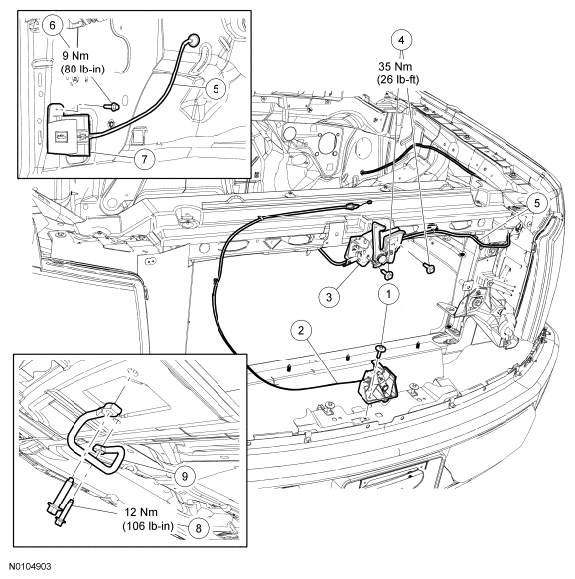

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W505425 | Secondary hood latch release handle bolt |
| 2 | 16916 | Secondary hood latch release handle and cable |
| 3 | 16700 | Hood latch |
| 4 | W711848 | Hood latch bolts (2 required) |
| 5 | 16916 | Primary hood latch release cable |
| 6 | W707722 | Primary hood latch release handle bolt |
| 7 | 16916 | Primary hood latch release handle |
| 8 | W500215 | Hood latch striker bolts (2 required) |
| 9 | 16K689 | Hood latch striker |
- For additional information, refer to the appropriate procedures in this information.
