Hood Latch Release Handle - Primary: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

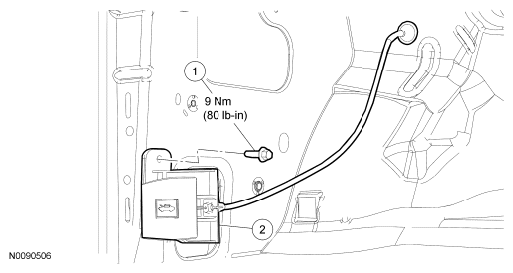

Fig 1: Hood Latch Release Handle Removal And Installation -- Primary With Torque Specifications
G06173836Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N805375 Primary hood latch release handle bolt
2 16916 Primary hood latch release handle and cable
