Front Door Latch: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

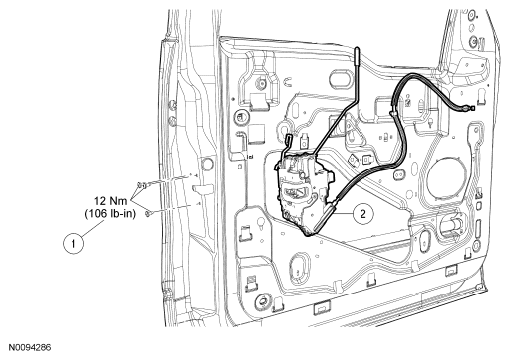

Fig 1: Front Door Latch Removal And Installation With Torque Specifications
G06173840Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W714092 Door latch bolts (3 required)
2 5421813/ 5421812 Door latch (LH/RH)
