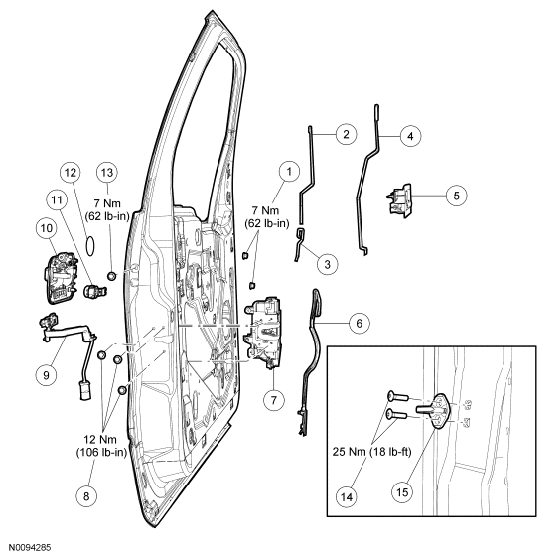

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N620480 | Exterior door handle nuts (2 required) |
| 2 | 1522153/1522152 | Exterior door handle actuating rod (LH/RH) |
| 3 | 1522135/1522134 | Lock cylinder actuating rod (LH/RH) |
| 4 | 1521853/1521852 | Door lock rod (LH/RH) |
| 5 | 1522601/1522600 | Interior door handle (LH/RH) |
| 6 | 63221A00 | Door latch release cable |
| 7 | 5421813/5421812 | Door latch (LH/RH) |
| 8 | W714092 | Door latch bolts (3 required) |
| 9 | 14A626 | Keyless entry keypad (if equipped) |
| 10 | 1522405/1522404 | Exterior door handle (LH/RH) |
| 11 | 1521990 | Door lock cylinder |
| 12 | W714163 | Exterior door handle bolt seal |
| 13 | W709562 | Exterior door handle bolt |
| 14 | W714017 | Door latch striker bolts (2 required) |
| 15 | 1522008 | Door latch striker |
- For additional information, refer to the appropriate procedures in this information.
