Door Lock Cylinder: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

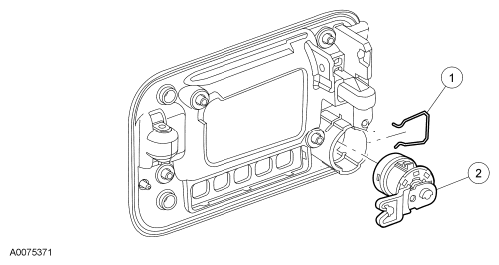

Fig 1: Identifying Retaining Clip And Door Lock Cylinder
G06173862Courtesy of FORD MOTOR CO.
Item Part Number Description
1 1522023 Retaining clip
2 1521990 Lock cylinder
