Door Lock Control Switch: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

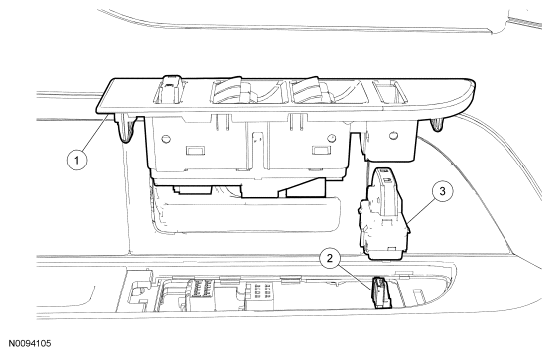

NOTE:
LH side shown in illustration, RH side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
14527/14528 |
Switch plate cover (LH/RH) |
| 2 |
- |
Door lock switch electrical connector |
| 3 |
14028 |
Door lock control switch |
