Transmission Fluid Auxiliary Pump: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    If equipped, release the retainers and remove the splash shield.
GFD38415Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the transmission fluid auxiliary pump electrical connector.
GFD41494Courtesy of FORD MOTOR COMPANY

  1. 4.

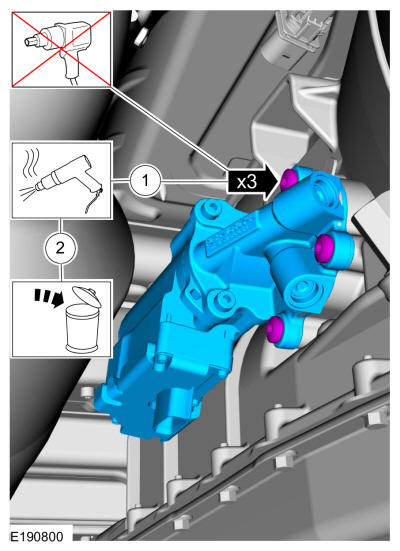

    NOTE: Do not use power tools to remove the transmission fluid auxiliary pump bolts or damage can occur.

    Remove the bolts and the transmission fluid auxiliary pump.

    1. 1.

      Apply heat to the bolts to soften the Loctite®.

    1. 2.

      Remove and discard the bolts.
multimedia:A supplement to the article is available.
GFD41495Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the transmission fluid auxiliary pump gasket.
GFD41496Courtesy of FORD MOTOR COMPANY
