Transmission Fluid Auxiliary Pump: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

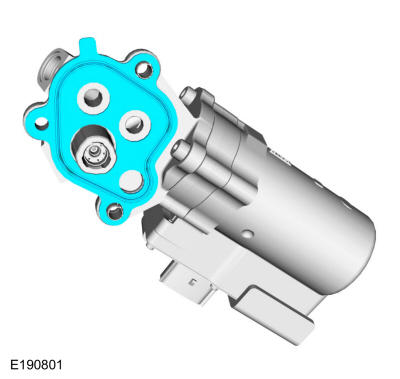

Install the transmission fluid auxiliary pump gasket.

Courtesy of FORD MOTOR COMPANY

2.

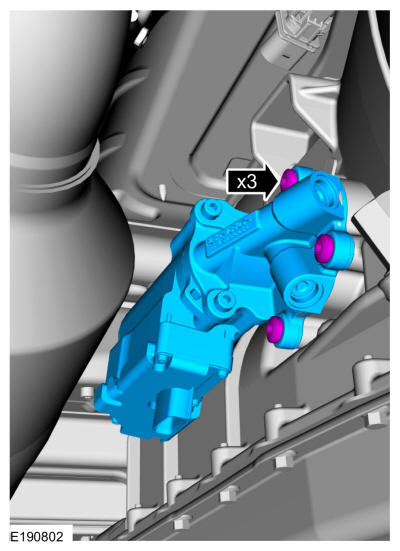

Install the transmission fluid auxiliary pump and the new bolts.
Torque

: 115 lb.in (13 Nm)

Courtesy of FORD MOTOR COMPANY

3.

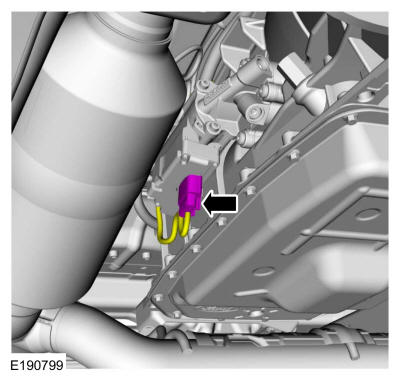

Connect the transmission fluid auxiliary pump electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

Check the transmission fluid level. Refer to: Transmission Fluid Level Check .

5.

Install the splash shield and the retainers.

Courtesy of FORD MOTOR COMPANY

6.

Prime the Transmission Fluid Auxiliary Pump. Using a diagnostic scan tool, Key ON, Engine OFF, command TRANS_PMP_CMD to 80% for 30 seconds.

7.

Carry out a road test until there is a stop / start event. If the restart is harsh, repeat the Transmission Fluid Pump prime procedure.

8.

Continue road test and evaluate each stop / start event. Repeat prime procedure until three consecutive normal stop / start events are achieved.

9.

Clear DTCs.
