Transmission - 3.5L EcoBoost (272kW/370PS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Remove the engine appearance cover.
GFD38911Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the LHHO2S electrical connector.
GFD41244Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the starter motor assembly. Refer to: STARTER MOTOR .

  1. 5.

    Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .

Four-Wheel Drive (4WD) vehicles

  1. 6.

    Remove the front driveshaft assembly. Refer to: Front Driveshaft .

Rear Wheel Drive (RWD)

  1. 7.

    Remove and discard the stabilizer bar bracket nuts and allow the stabilizer bar to swing downward.
GFD38417Courtesy of FORD MOTOR COMPANY

All vehicles

  1. 8.

    NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

    Remove the bolts and the transmission fluid pan and allow the transmission fluid to drain.

GFD41427Courtesy of FORD MOTOR COMPANY

  1. 9.

    NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

GFD41427Courtesy of FORD MOTOR COMPANY

  1. 10.

    NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission.

    Use the General Equipment: Transmission Jack

  1. 11.

    Remove the LH catalytic converter. Refer to: CATALYTIC CONVERTER LH .

  1. 12.

    Remove the transmission support insulator. Refer to: Transmission Support Insulator .

  1. 13.

    Disconnect the HO2S electrical connector.
GFD41242Courtesy of FORD MOTOR COMPANY

  1. 14.

    Disconnect the catalyst monitor sensor electrical connector.
GFD41452Courtesy of FORD MOTOR COMPANY

  1. 15.

    Remove the bolts from the catalytic converter flange to the muffler inlet pipe.
GFD41430Courtesy of FORD MOTOR COMPANY

  1. 16.

    NOTE: Clean all exhaust connections before reassembly.

    Remove and discard the catalytic converter nuts and remove the catalytic converter.

GFD41453Courtesy of FORD MOTOR COMPANY

  1. 17.

    If equipped, remove the nut and the selector lever cable splash shield.
GFD41406Courtesy of FORD MOTOR COMPANY

  1. 18.

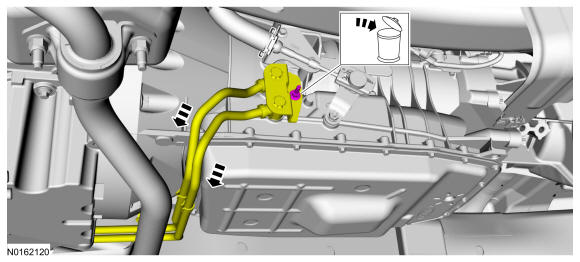

    Remove and discard the transmission fluid cooler tube bracket bolt and position aside the transmission fluid cooler tubes.
GFD41454Courtesy of FORD MOTOR COMPANY

  1. 19.

    NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

    1. 1.

      Remove the selector lever cable bolt.

    1. 2.

      Move the locking tab up and disconnect the selector lever cable end from the manual control lever.

    1. 3.

      Disconnect the selector lever cable from the bracket and position aside.
GFD41432Courtesy of FORD MOTOR COMPANY

Rear Wheel Drive (RWD)

  1. 20.

    Remove the fuel line bracket bolt.
GFD41455Courtesy of FORD MOTOR COMPANY

Four-Wheel Drive (4WD) vehicles

  1. 21.

    Remove the fuel line bracket bolt and disconnect the transfer case vent tube.
GFD41456Courtesy of FORD MOTOR COMPANY

  1. 22.

    Disconnect the transfer case electrical connector.
GFD41435Courtesy of FORD MOTOR COMPANY

All vehicles

  1. 23.

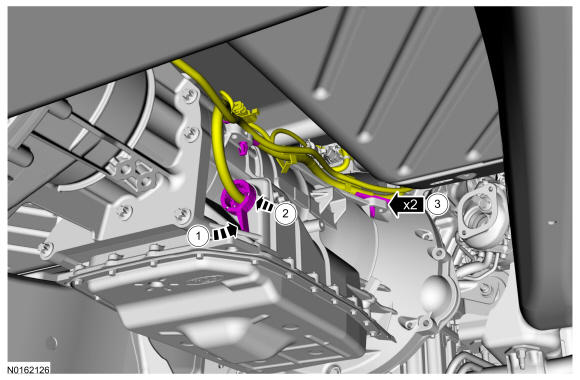

    NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.

    1. 1.

      Rotate the transmission electrical connector counterclockwise.

    1. 2.

      Pull the transmission electrical connector out to disconnect.

    1. 3.

      Detach the retainers and position the wiring harness aside.
GFD41457Courtesy of FORD MOTOR COMPANY

  1. 24.

    Remove the pin-type retainers and the access cover.
GFD41458Courtesy of FORD MOTOR COMPANY

  1. 25.

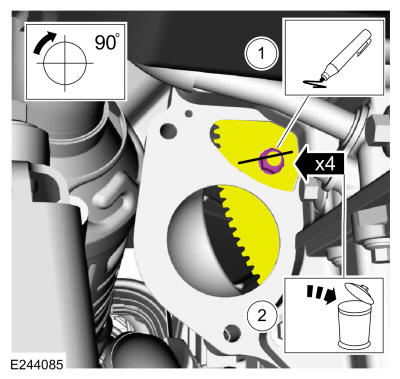

    NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    1. 1.

      Index mark one stud and the flexplate for assembly reference.

    1. 2.

      Remove and discard the torque converter nuts.
GFD41459Courtesy of FORD MOTOR COMPANY

  1. 26.

    Remove the lower bellhousing bolt.
GFD41460Courtesy of FORD MOTOR COMPANY

  1. 27.

    Remove the RH side bellhousing bolts.
GFD41461Courtesy of FORD MOTOR COMPANY

  1. 28.

    Remove the top bellhousing bolts and position aside the bracket.
GFD41462Courtesy of FORD MOTOR COMPANY

  1. 29.

    Remove the LH bellhousing bolts and the selector lever cable bracket.
GFD41438Courtesy of FORD MOTOR COMPANY

  1. 30.

    Slide the transmission back enough to install the special tool.

    Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

GFD41463Courtesy of FORD MOTOR COMPANY

Rear Wheel Drive (RWD) vehicles

  1. 31.

    Using the high-lift transmission jack, remove the transmission from the vehicle.

    Use the General Equipment: Transmission Jack

Four-Wheel Drive (4WD) vehicles

  1. 32.

    1. 1.

      Make sure the transmission is securely fastened to the transmission jack.

    1. 2.

      Slide the transmission towards the rear of the vehicle.

    1. 3.

      Tilt the front of the transmission down.

    1. 4.

      Remove the transmission from the vehicle.
GFD41440Courtesy of FORD MOTOR COMPANY

  1. 33.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts and separate the transfer case from the transmission.
GFD41441Courtesy of FORD MOTOR COMPANY

All vehicles

  1. 34.

    If installing a new or re-manufactured transmission, remove and discard the bolts.
GFD41442Courtesy of FORD MOTOR COMPANY

  1. 35.

    NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carryout the Transmission Fluid Cooler Backflushing and Cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
