Output Shaft Seal: Removal

1. 1.

   With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

Rear Wheel Drive (RWD) vehicles

1. 2.

   Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .

1. 3.


   NOTE: The output shaft flange retaining nut has been staked to prevent it from coming loose. Prior to removing the nut, remove the stake to prevent damage to the output shaft.

   Remove the stakes from the output shaft flange retaining nut.

   Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove and discard the output shaft flange retaining nut.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the output shaft flange seal and the output shaft flange.

Courtesy of FORD MOTOR COMPANY

1. 6.

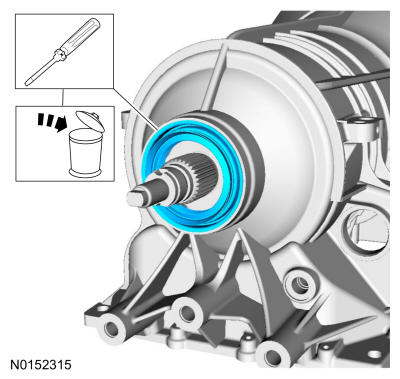

   Remove and discard the output shaft seal.

Courtesy of FORD MOTOR COMPANY

Four-Wheel Drive (4WD) vehicles

1. 7.

   Remove the transfer case assembly. Refer to: Transfer Case .

1. 8.

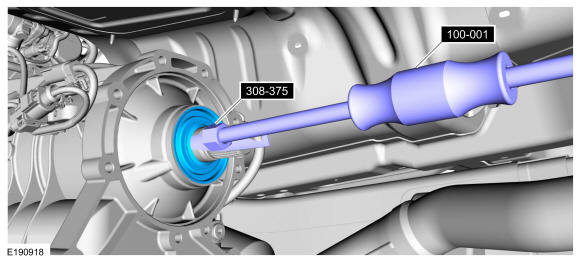

   Using the special tools, remove and discard the output shaft seal.

   Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer, 308-375 Remover, Input Shaft Seal.

Courtesy of FORD MOTOR COMPANY
