Seat Latch Striker - Rear, Crew Cab: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: 40 percent shown in illustration, 60 percent similar.

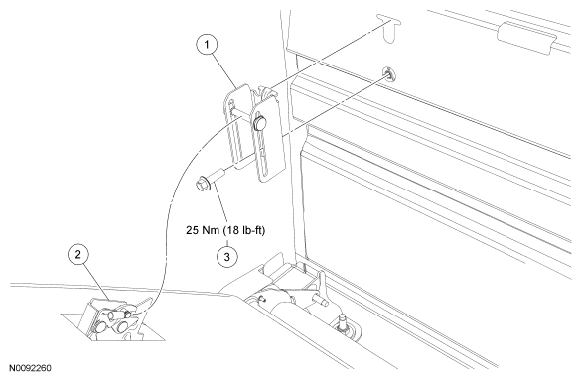

Fig 1: Rear Seat Latch Striker Removal And Installation - Crew Cab With Torque Specifications
G06173628Courtesy of FORD MOTOR CO.
Item Part Number Description
1 62452 Striker
2 61383 Backrest latch
3 W505284 Striker bolt
