Seat - Rear, SuperCab: Removal
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Seat backrest removal
- Release the 2 backrest latches.

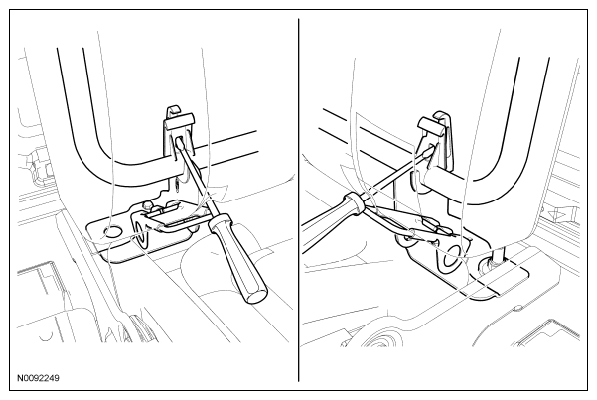

- Locate the 2 access holes in the backrest frame aligned with the inboard edge of the child safety seat anchors and insert a suitable tool through the access holes.
- Be careful not to damage the seat trim covers.
- Push in and release the 2 backrest latches.
- Push the backrest down slightly to allow the latches to release, then raise the backrest away from the latch.
- Locate the 2 access holes in the backrest frame aligned with the inboard edge of the child safety seat anchors and insert a suitable tool through the access holes.
- Raise the backrest and release the upper clips.
- Route the backrest through the center safety belt webbing and remove.
Seat cushion removal
- With the backrest removed, remove the 4 rear seat nuts.
- Position the rear center safety belt anchor aside.
- Remove the safety belt buckle.
- Remove the spare tire jack to access the front seat bolts.
- Remove the 3 front seat bolts and seat cushion.
