Seat - Rear, SuperCab: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

Seat cushion installation

Position the seat cushion in the vehicle.
Install the 3 front seat bolts.
- Tighten to 47 Nm (35 lb-ft).
Install the rear center safety belt anchor, safety belt buckle and 4 rear seat nuts.
- Tighten to 80 Nm (59 lb-ft).
- Route the safety belt buckle through the elastic strap.
Install the spare tire jack.
Seat backrest installation
Route the backrest through the center safety belt webbing and position in the vehicle.
NOTE: Cab back panel not shown for clarity.
Install the backrest.
1. Align the backrest frame guide to the cushion frame.
2. Align the 3 upper clips to the rear cab sheet metal.
3. Press down on the backrest until the 2 backrest latches engage.
  - Make sure all 3 upper clips are engaged and both backrest latches are locked.

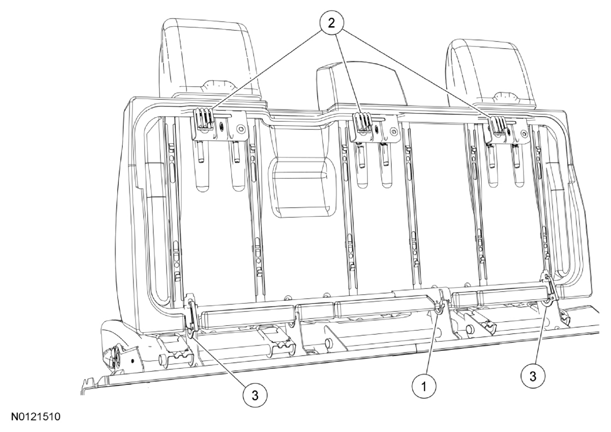

    Fig 1: Identifying Seat Backrest Installation
    Courtesy of FORD MOTOR CO.
