60 Percent Seat

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

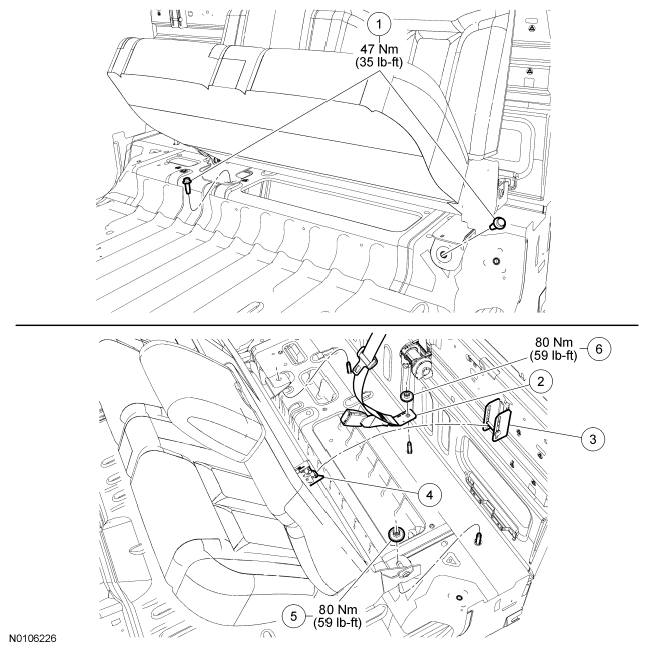

Fig 1: 60 Percent Seat Removal And Installation -- Rear, Crew Cab With Torque Specifications
G06458813Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W710721 Front seat bolts (2 required)
2 - Safety belt retractor anchor and buckle (part of 611B64)
3 62452 Striker
4 61383 Backrest latch
5 W708731 Rear seat nut
6 W708731 Safety belt retractor anchor nut
