Driver Seat
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to the installation steps for tightening sequence and torque specification.

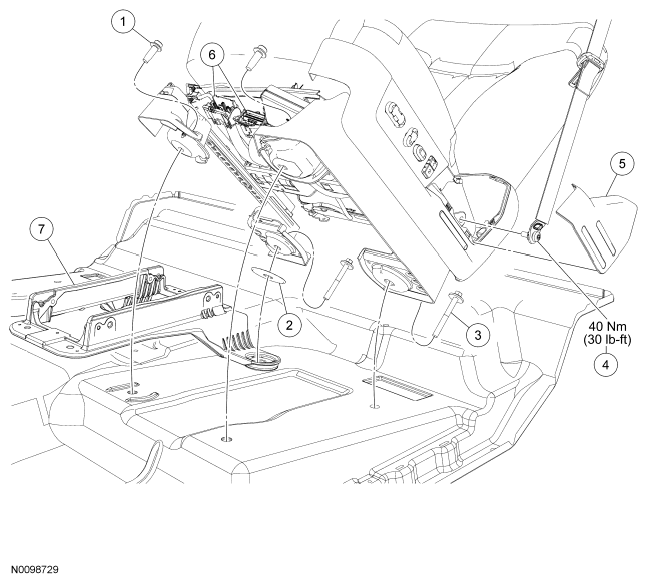

| Item | Part Number | Description |
|---|---|---|
| 1 | W714302 | Front seat mounting bolt (2 required) |
| 2 | - | Upper spacer (part of 045B34) |
| 3 | W714093 | Rear seat mounting bolt (2 required) |
| 4 | - | Safety belt anchor and bolt (part of 611B09) (regular and Crew Cab only) |
| 5 | 61693 | Safety belt anchor cover (regular and Crew Cab only) |
| 6 | - | Seat electrical connectors (part of 14D231) |
| 7 | 045B34 | Pedestal |
