Seat - Front, Center: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

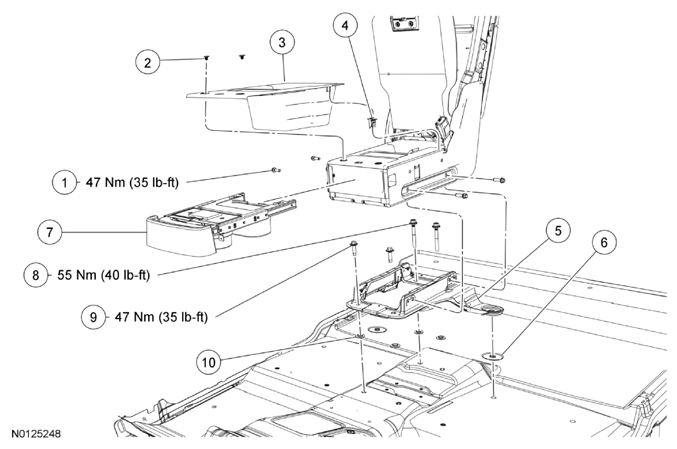

| Item | Part Number | Description |
|---|---|---|
| 1 | W714278 | Seat mounting bolt (4 required) |
| 2 | N803678 | Pin-type retainers (2 required) |
| 3 | 115A00 | Storage tray |
| 4 | W711045 | Retainer clips (2 required) |
| 5 | 045B34 | Pedestal |
| 6 | - | Spacer (part of 045B34) (2 required) |
| 7 | 13562 | Front cupholder |
| 8 | W714792 | Pedestal bolts (rear) (2 required) |
| 9 | W714276 | Pedestal bolts (front) (2 required) |
| 10 | - | Washer (part of 045B34) (4 required) |
