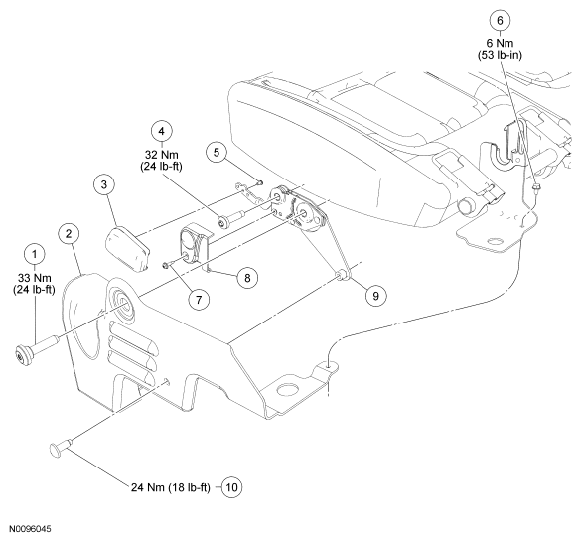

Seat Cushion Latch - 60 Percent
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W713205 | Pivot bolt |
| 2 | 60693 | Outboard riser |
| 3 | 62419 | Latch release handle |
| 4 | W504777 | Front latch bolt |
| 5 | W700915 | Latch release handle screw |
| 6 | 60108 | Riser rear screw |
| 7 | N811172 | Latch bolt cover screw |
| 8 | 61351 | Latch bolt cover |
| 9 | 67413 | Cushion latch |
| 10 | N806910 | Rear latch bolt |
