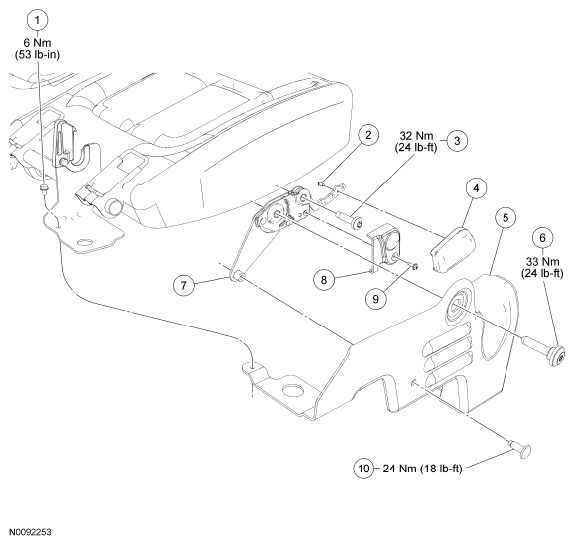

Seat Cushion Latch - 40 Percent
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 60108 | Riser rear screw |
| 2 | W700915 | Latch release handle screw |
| 3 | W504777 | Front latch bolt |
| 4 | 62418 | Latch release handle |
| 5 | 60692 | Outboard riser |
| 6 | W713205 | Pivot bolt |
| 7 | 67412 | Cushion latch |
| 8 | 61350 | Latch bolt cover |
| 9 | N811172 | Latch bolt cover screw |
| 10 | W806910 | Rear latch bolt |
