Seat Cushion - 40 and 60 Percent
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

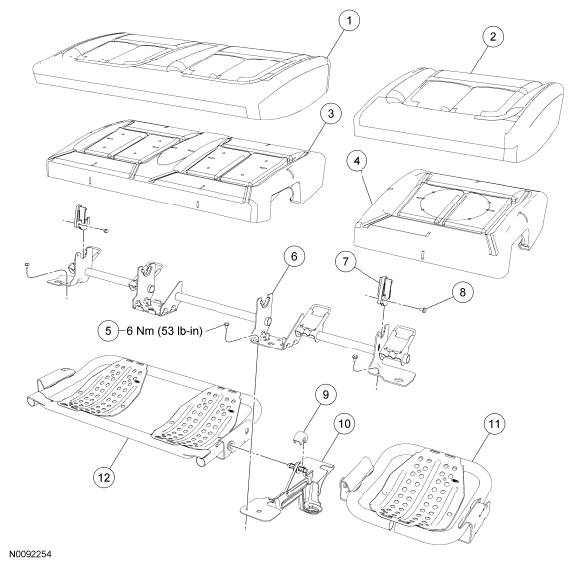

| Item | Part Number | Description |
|---|---|---|
| 1 | 63805 | 60 percent cushion cover |
| 2 | 63804 | 40 percent cushion cover |
| 3 | 63841 | 60 percent cushion foam pad |
| 4 | 63840 | 40 percent cushion foam pad |
| 5 | 60108 | Riser rear screw (3 required) |
| 6 | 601B28 | Rear seat frame |
| 7 | 613F60 | Backrest latch (2 required) |
| 8 | - | Backrest latch screw |
| 9 | 638A96 | Retention clip |
| 10 | 60692 | Inboard riser |
| 11 | 63160 | 40 percent cushion frame |
| 12 | 63161 | 60 percent cushion frame |
- For additional information, refer to the procedures in this information.
